EchoNavigator
Live echo and live X-ray fusion tool
EchoNavigator
Live echo and live X-ray fusion tool
EchoNavigator automatically fuses live 3D TEE and live X-ray in real time. The solution assists heart teams with intuitive image guidance during procedures where both real-time X-ray and echo imaging are used and fused together.

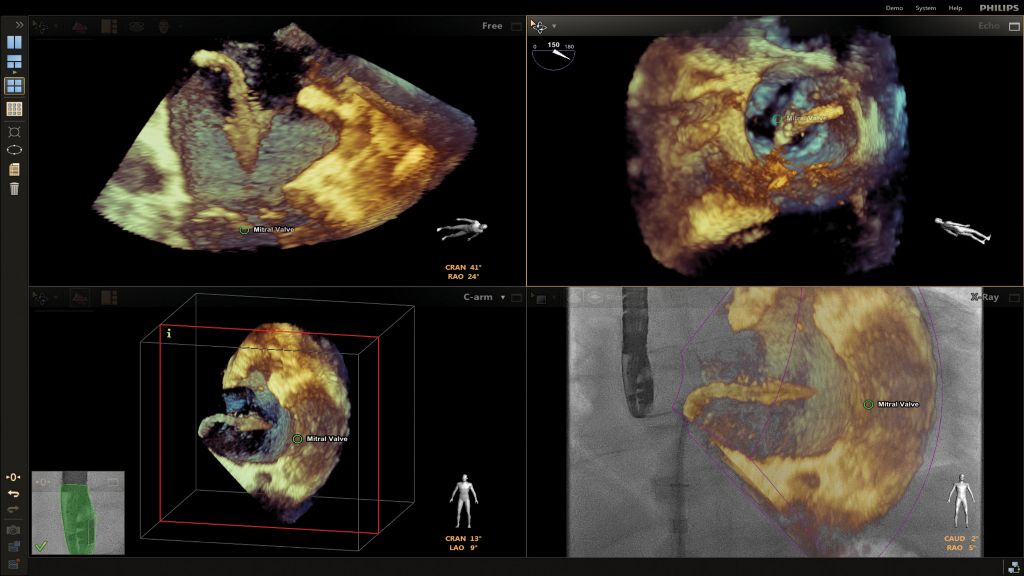

Clinical image gallery

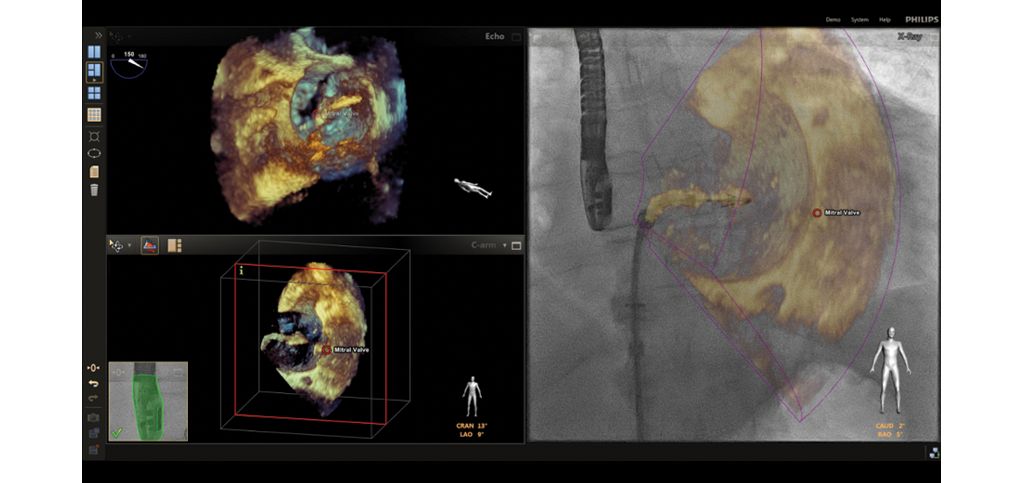

- View XRay image with markers for context and guidance
Features
Automated markers give context and guidance
Markers placed on the soft tissue structures within the echo image automatically appear on the X-ray for context and guidance.
Smooth workflow
Transparent communication and understanding are necessary between the echocardiographer and the interventionalist or surgeon to ensure agreement on how to proceed. By automatically fusing echo and X-ray images, EchoNavigator speeds up this process and enhances teamwork.
Additional reference point through TEE cone
The TEE field of view (cone) is displayed as an outline to give you an additional reference point while working. 3D transesophageal echocardiography (TEE) imaging provides critical insights into soft tissue anatomy.
