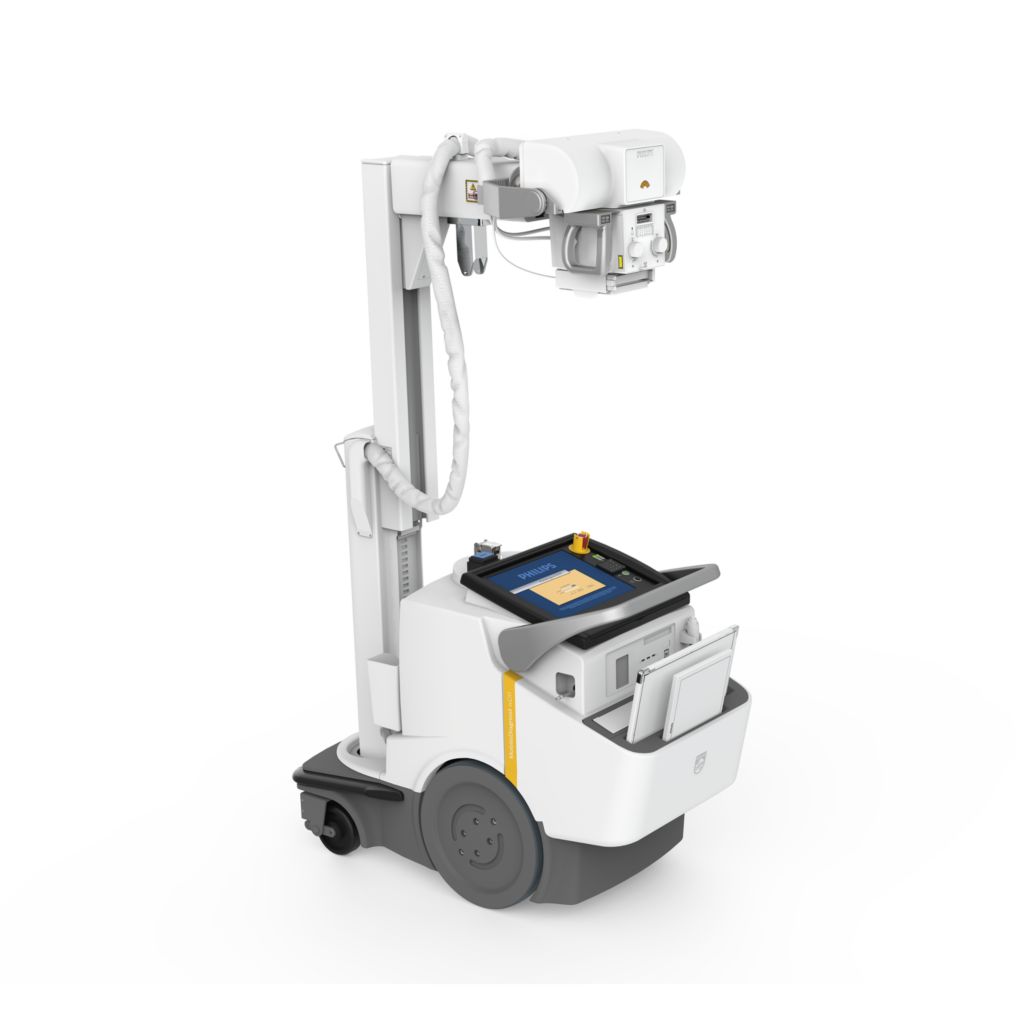

Radiography 5700 M — MobileDiagnost wDR Premium bundle
Mobile digital radiography solution
Radiography 5700 M — MobileDiagnost wDR Premium bundle
Mobile digital radiography solution
Premium bundle of the MobileDiagnost wDR 2.2 is the ideal solution for enhanced workflow offering great versatility of exams. It is composed of a base unit which provides several features aimed to ease the workflow, especially in hectic environments of Intensive Care Units and Emergency Rooms. This bundle allows full range of radiography applications with powerful 40 kW generator, which enables shorter exposure times and thereby minimizing motion artifacts. The tube has 1.3 and 0.7 focal spot and is available for a maximum tube voltage of 150 kV. Excellent results can be achieved even for challenging examinations such as spine trauma, bariatric & critical patients.
Features
Excellent mobility
The robust, mobile system offers a sliding column that moves down and out of the way for a clear view of your surroundings. This clear field of vision allows for outstanding workflow, as maneuverability is enhanced when accessing challenging spaces in the OR, ER, ICU, and general ward.
Seamless workflow

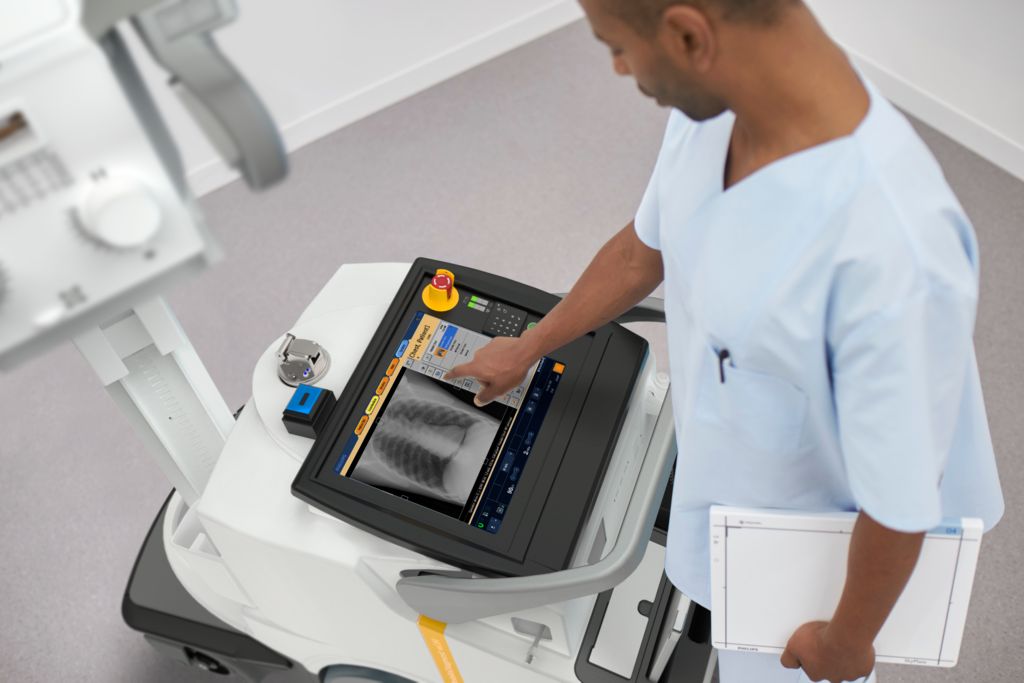

MobileDiagnost wDR allows for outstanding workflow with easy tubehead positioning, cable-free design, SkyPlate wireless portable detectors, rapid availability of premium digital images, SkyFlow Plus technology, and only 3-clicks to complete an exam, all combine to speed you through your day.
Outstanding image quality
Superb, high contrast images are possible on the system (without a grid) using SkyPlate detectors and SkyFlow Plus technology. UNIQUE 2 second generation multi-resolution image processing and a powerful 40Kw generator help attain quality images for a broad variety of patient types and support diagnostic confidence.
Specifications
- Mobile unit with sliding column
- Type
- Mobile X-ray w/ telescopic X-ray tube arm, sliding column&wireless detector
- Dimensions (l x w x h)
- 200 cm x 80 cm (78.7" x 31.5")
- Wheel base length
- 611 mm (24.1")
- Motorization
- 0-5 km/h (0-3.1 mph)
- Focal point distance from floor
- sliding column: 53 to 202 cm (20.9" to 79.5")
- Focal point distance from column
- max: 1242 mm (48.9'')
- min: 702 mm (27.6'')
- Tube column rotation
- ±317°
- Batteries
- Separate batteries for drive and generator control
- Power for charging
- single phase 230/220/210/110/100 VAC ± 10%; 50/60Hz
- Generator and tube (wDR Performance)
- Power: high frequency
- 20 KW
- mA range
- 10 to 320 mA
- Exposure times
- With Skyplate: 0.001 - 1.25 s With free cassette: 0.001 - 4 s
- Focal spot (small/large)
- 0.3 / 1.0
- Tube voltage in steps of 1kV
- 40 - 125 KV
- mAs range
- 0.1 - 500 mAs
- Anode heat storage capability
- 100 kJ (140 kHU)
- Generator and tube (M90 High Performance)
- Power: high frequency
- 40 KW
- Tube voltage in steps of 1kV
- 40 - 150 KV
- mA range
- 10 to 500 mA
- mAs range
- 0.1 - 500 mAs
- Exposure times
- With Skyplate: 0.001 - 1.25 s With free cassette: 0.001 - 4 s
- Anode heat storage capability
- 220 kJ (300 kHU)
- Focal spot (small/large)
- 0.7 / 1.3
- SkyPlate wireless portable detectors
- Type
- Digital Cesium lodide (CsI)
- housing
- Carbon fiber
- detector sizes
- small: 24 cm x 30 cm (10''x12'') approx
- large: 35 cm x 43 cm (14''x17'') approx
- active area
- small: 22.2 cm x 28.4 cm (8.7'' x 11.2'') approx
- large: 34.48 cm x 42.12 cm (13.6'' x 16.6'') approx
- image matrix size
- small: 1500 x 1920 pixel
- large: 2330 x 2846 pixel
- detector pixels
- small: 2.9 Megapixels
- large: 6.6 Megapixels
- image resolution
- up to 3.38 Lp/mm
- pixel size
- 148 µm
- weight (incl. battery)
- small: 1.6 kg (3.5 lbs)
- large: 2.8 kg (6.2 lbs)
- maximum load
- 100 kg (220 lbs) on 4 cm disk for weight bearing examinations
- 300 kg (662 lbs) for distributed load.
- SkyPlate E wireless portable detector
- Type
- Digital Cesium lodide (CsI)
- detector sizes
- large: 35 cm x 43 cm (14'' x 17'') approx
- image matrix size
- large: 2156 x 2662 pixel
- image resolution
- up to 3.125 Lp/mm
- weight (incl. battery)
- large: 3.1 kg (6.8 lbs)
- housing
- Carbon fiber
- active area
- large: 34.5 x 42.5 cm (13.6’’ x 16.7’’) approx.
- detector pixels
- large: 5.7 Megapixels
- pixel size
- 160 µm
- maximum load
- 100 kg (220 lbs) on 4 cm disk for weight bearing examinations
- 300 kg (662 lbs) for distributed load
- Eleva user interface
- Monitor
- 17'' touch-screen monitor
- Generator control integrated into graphical user interface
- more than 600 pre-programmable settings (APRs)
- Image storage
- up to 4,000 images
- Lunit INSIGHT CXR¹ (Option) Hardware Components
- Operating System
- Linux RHEL 8.3
- Size
- H: 386 mm (15.2 in)
- W: 169 mm (6.65 in)
- D: 445 mm (17.5 in)
- CPU
- 8 cores, 3.9 GHz
- Memory
- 32 GB
Related products
- Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room. Main benefits at a glance • Effortless to position in everyday clinical practice thanks to light weight • Easy handling, especially for free exposures, thanks to the detector's cable-free design • State-of-the-art Cesium Iodide (CsI) detector technology for optimal image quality at low dose • Robust shell protecting from water drops and dust • Flexible positioning for lateral or oblique projections • ISO 4090 compliant dimensions to fit into standard operating room tables • Sharing license, to use the detector on other compatible Philips X-ray systems Main specifications Type: Digital CsI (Cesium Iodide) flat detector Detector size: 24 cm x 30 cm (approx. 10 in x 12 in) Pixel size: 148 µm
- Philips SkyPlate is the next generation of wireless portable detectors. It is an integrated part of the X-ray system and Eleva platform, and defines a new dimension of flexibility and freedom within the radiography room. Main benefits at a glance • Effortless to position in everyday clinical practice thanks to light weight • Easy handling, especially for free exposures, thanks to the detector's cable-free design • State-of-the-art Cesium Iodide (CsI) detector technology for optimal image quality at low dose • Robust shell protecting from water drops and dust • Flexible positioning for lateral or oblique projections • ISO 4090 compliant dimensions to fit into standard operating room tables • Sharing license, to use the detector on other compatible Philips X-ray systems Main specifications • Type: Digital CsI (Cesium Iodide) flat detector • Detector size: 35 cm x 43 cm (14 in x 17 in) • Pixel size: 148 µm

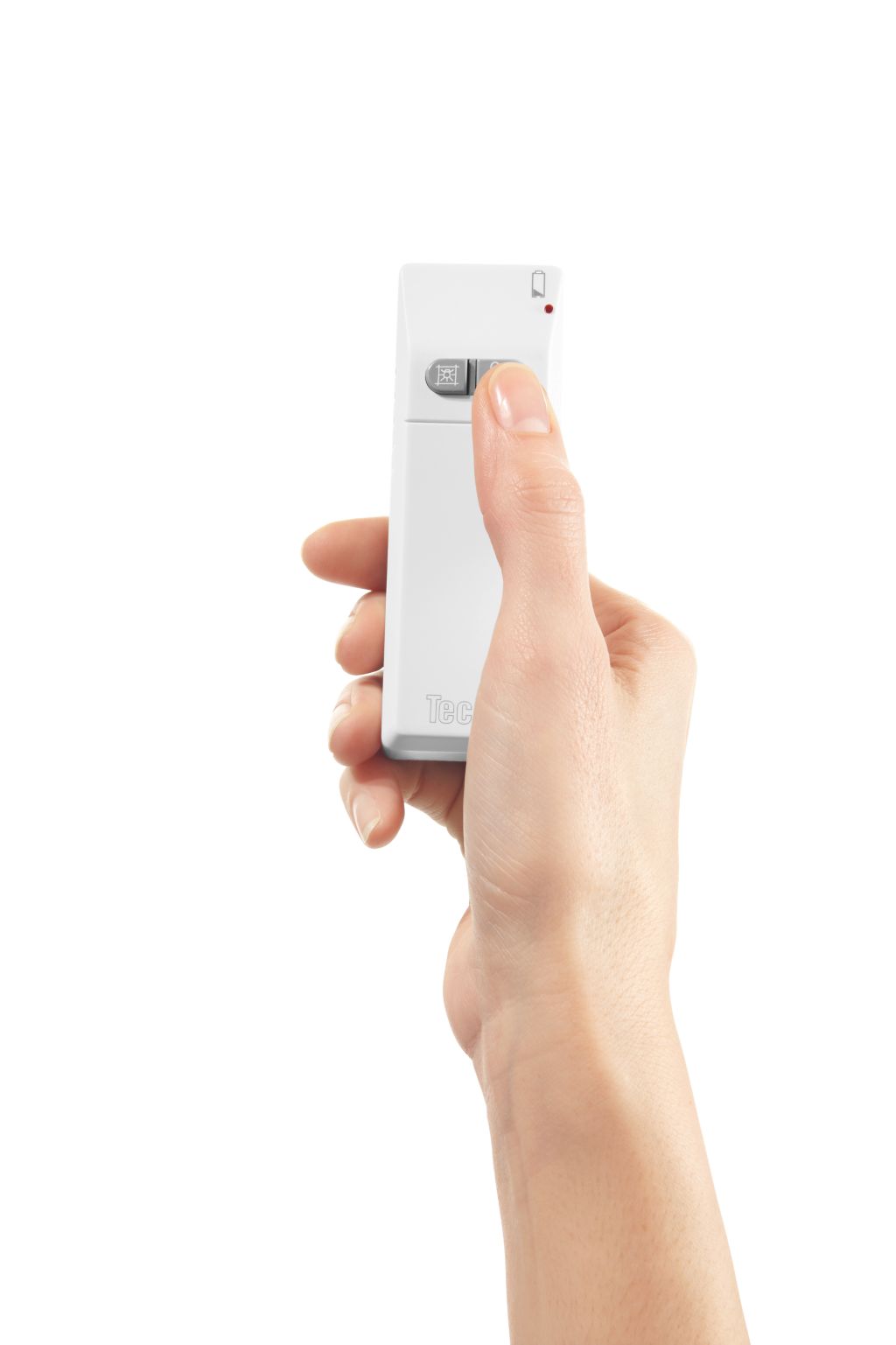

- The Wireless remote control for MobileDiagnost wDR enables to release X-ray dose from a maximum distance of up to 10 meters / 32.8 ft. Therefore, technologists can keep a larger distance to the X-ray source for ideal radiation protection using infrared technology. This enables the user to operate on line of sight and through glass and/ or leaded glass. Comprising • Remote control hand held device incl. battery • Remote control signal receiver at the mobile unit • Cradle for storage of the remote control (self adhesive)
- To avoid extensive scatter radiation on images, an anti-scatter grid is sometimes used, typically for anatomies such as chest, abdomen or pelvis. With SkyFlow, Philips presents an innovation and exciting way to enhance image quality for all anatomies where grid was recommended without applying an anti-scatter grid. Such as Abdomen, Chest, Knee, Pelvis, Shoulder. The SkyFlow functionality is especially suitable for bariatric patients. Once the license is installed at the system, it does not need a single technologist interaction and is automatically applied on images.
Disclaimer
*When compared to the Philips Radiography 5700 M – MobileDiagnost wDR Pro bundle
