Reusable, adult SpO₂ clip sensor
Pulse oximetry supplies
Reusable, adult SpO₂ clip sensor
Pulse oximetry supplies

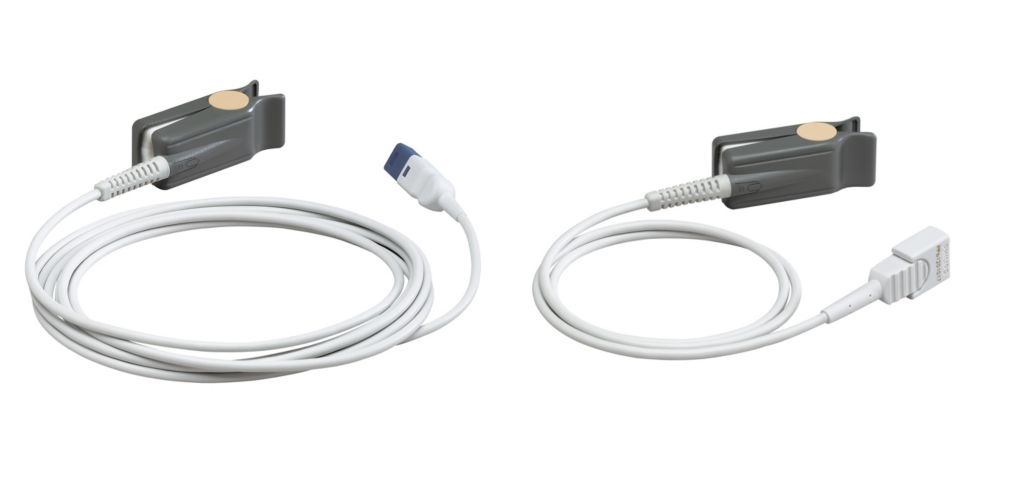

The reusable Philips M1196T adult clip sensor effectively measures pulse oximetry on adults and children weighing more than 40 kg (88 lbs). It is manufactured without latex. This sensor features a 90 cm (35.4 in) cable length and connects to 12-pin devices via M1900B adapter cable and connects to 8-pin devices via M1943A or M1943AL adapter cables and can be used with M4787A extension cable or validated 9-pin devices.
Features
Comprehensive warranty
"Durable and cost-effective, the sensor is designed to withstand repeated use. It comes with a comprehensive warranty.*
*Check with your local sales representative for the warranty details in your area."
Designed for FAST-SpO₂
Our pulse oximetry sensors are designed specifically for Philips proprietary FAST-SpO₂ (Fourier Artifact Suppression Technology) algorithm. Together, they reduce effects from patient movement, electronic interference, ambient light and low perfusion.
Durable and validated
All our SpO₂ sensors undergo demanding testing to make sure they meet Philips standards.
Specifications
- SpO2 Sensor
- Patient Application
- Child; Adult
- Application Site
- Finger
- Adapter Cable Compatibility
- M1943A; M1943AL
- Recommended Patient Weight
- >40 kg (>88 lb)
- Cable Length
- 90 cm (35.4'')
- Product details
- Use with Non-Philips Healthcare Equipment
- No
- Use with Philips Healthcare Equipment
- 862108, 862231, 862439, 862474, 862478, 863051, 863053, 863054, 863063, 863064, 863065, 863066, 863068, 863069, 863071, 863072, 863073, 863074, 863077, 863080, 863081, 863085, 863086, 863087, 863088, 863264, 863265, 863266, 863276, 863278, M1020A, M1020B, M1350B, M1350C, M2600A, M2703A, M2704A, M2705A, M3000A, M3001A, M3002A, M3535A, M3536A, M3536M, M3926A, M3927A, M3928A, M3929A, M4735A, M8102A, M8105A, M8105AT, M8105AS
- Product Category
- SpO2
- Product Type
- Sensor
- CE Certified
- Yes
- Single-Patient Use OR Multi-Patient Use
- Multi-Patient Use
- Package Weight
- .240
- Not manufactured with natural rubber latex
- Yes
- Packaging Unit
- 1 sensor
- Sterile OR Non-Sterile
- Non-Sterile
- Minimum Shelf Life
- None
- Use with Other Supplies
- M1900B, M1943A, M1943AL, M4787A
Related products
- Designed for use with Philips SpO₂ monitors and sensors, the M1943A 8-pin adapter cable is 1.1 m (3.6 ft) in length and features a D-sub connector. It adapts 9-pin sensors to 8-pin sockets. It can be used with these sensors: M1131A, M1132A, M1133A, M1134A, M1140A, M1191T, M1192T, M1193T and M1196T.

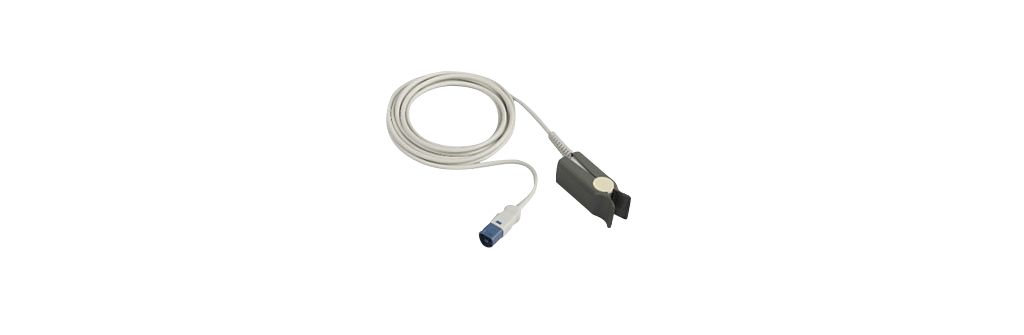

- The reusable Philips M1196A adult clip sensor effectively measures pulse oximetry in adults and children weighing more than 40 kg (88 lbs). It features a 3.0m (9.8 ft) cable length to accommodate varied monitor placement. It is manufactured without latex.
- The Philips M1191T SpO₂ glove sensor features a mid-point connector for efficient transfer from a bedside to a transport or mobile patient monitor. It is designed for use on the fingers of adults greater than 50 kg (110 lbs). This durable, comfortable sensor is manufactured without latex and supports cost-effective oxygen saturation measurement.
- Designed for use with Philips SpO₂ monitors and sensors, the M1943AL adapter cable is 3 m (9.8 ft) in length and features a D-sub connector. It adapts 9-pin sensors to 8-pin sockets. It can be used with these sensors: M1131A, M1132A, M1133A, M1134A, M1140A, M1191T, M1192T, M1193T and M1196T.
Disclaimer
Product may not be available in all geographies, please check with your Philips representative for complete portfolio availability.
