TightRail Sub-C
Mechanical rotating dilator sheath
TightRail Sub-C
Mechanical rotating dilator sheath
TightRail Sub-C is specifically designed for the challenges of the subclavian region, including vessel entry when fibrosis and calcium are present.
Clinical image gallery

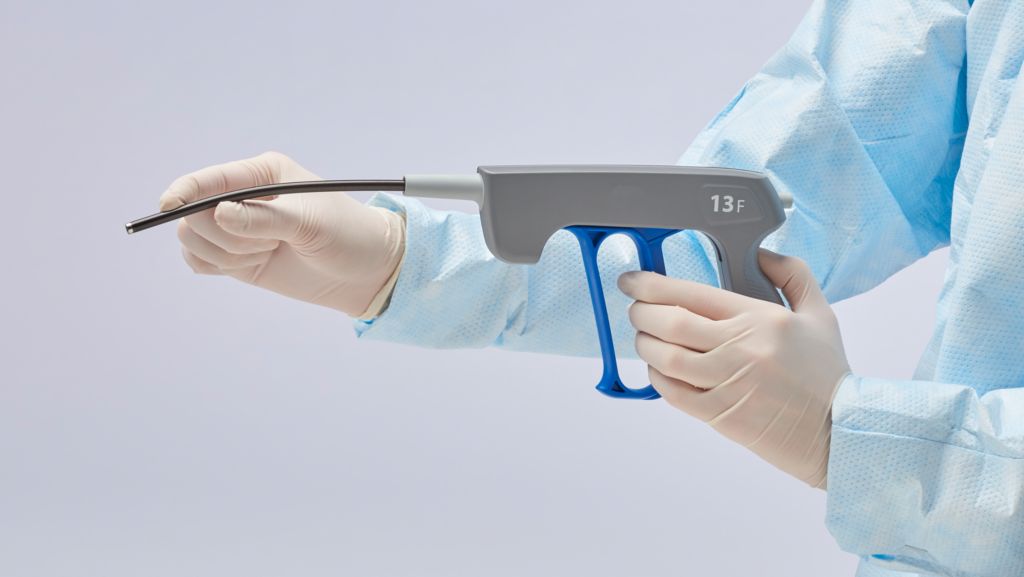

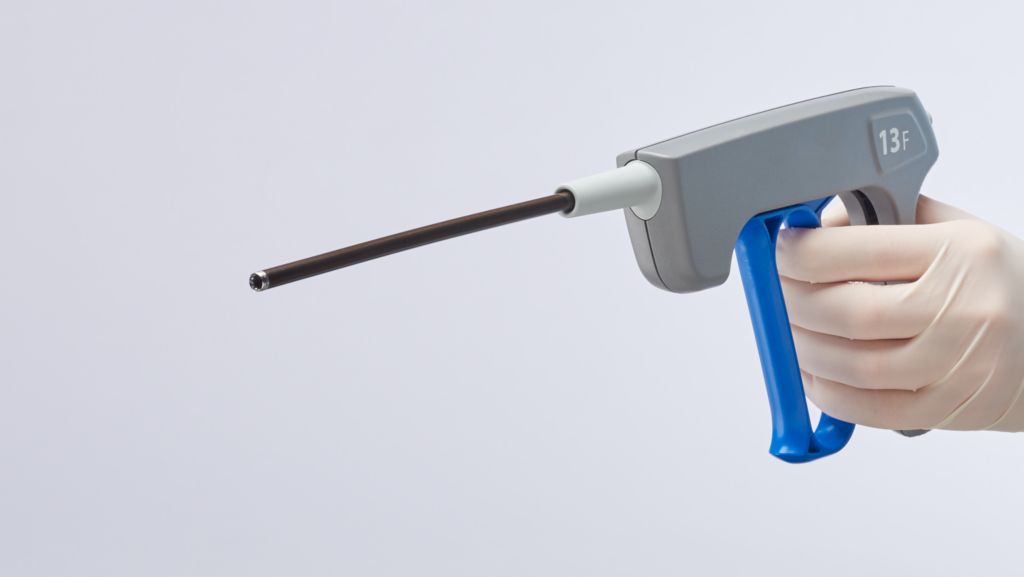

- TightRail Sub-C mechanical rotating dilator sheath
Features
Efficient dilation

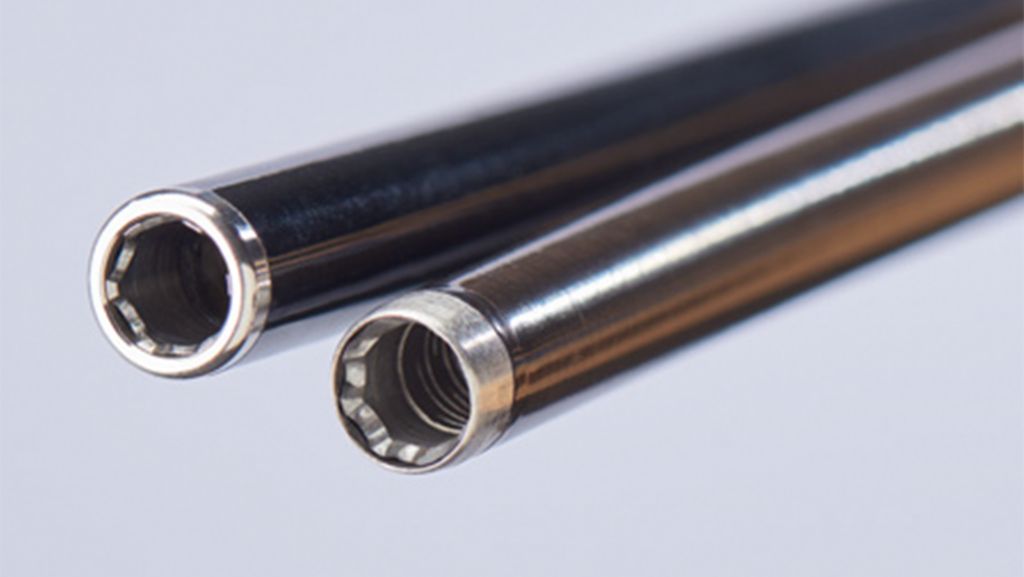

Re-designed blade and low profile tip for efficient dilation in the subclavian region
Pushability
A short, stiff shaft at base for pushability
Trackability
A flexible tip for trackability and ease of navigation under the clavicle
Specifications
- Model number 560-009
- Size
- 9F
- Device inner diameter
- 9.1F / 0.119" / 3.0 mm
- Device outer diameter
- 14.4F / 0.187" / 4.8 mm
- Outer sheath outer diameter
- 18.9F / 0.245" / 6.3 mm
- Working length
- 6.1" / 15.5 cm
- Model number 560-011
- Size
- 11F
- Device inner diameter
- 11.1F / 0.145" / 3.6 mm
- Device outer diameter
- 16.4F / 0.213" / 5.5 mm
- Outer sheath outer diameter
- 20.9F / 0.271" / 6.9 mm
- Working length
- 6.1" / 15.5 cm
- Model number 560-013
- Size
- 13F
- Device inner diameter
- 13.1F / 0.171" / 4.3 mm
- Device outer diameter
- 18.4F / 0.239" / 6.1 mm
- Outer sheath outer diameter
- 22.9F / 0.297" / 7.6 mm
- Working length
- 6.1" / 15.5 cm
Disclaimer
Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
