Avalon FM30
Fetal monitor
Avalon FM30
Fetal monitor
Avalon FM fetal and maternal monitors are Philips' first and only to offer automated coincidence detection (cross-channel verification) using Smart Pulse, measuring fetal & maternal heart rates separately to enhance diagnostic confidence.
Features
Smart Pulse for automated coincidence detection
Smart Pulse provides cross-channel verification. It continuously compares all fetal and maternal heart rates, enhancing caregiver confidence that each is measured separately.
Extensive fetal parameters when more information is needed
For complex cases, the Avalon FM30 fetal monitor offers external and internal fetal parameters. These include ultrasound, fetal movement, direct fetal heart rate, Toco and intrauterine pressure, as well as maternal pulse rate, and ECG, with optional Sp02 and blood pressure.
Variety of readings for comprehensive understanding
This antepartum and intrapartum monitor provides a wide range of readings. These include separate maternal pulse measurement; integrated monitoring of maternal pulse rate and blood pressure (optional); external monitoring of fetal heart rates, uterine activity, and fetal movement; an extensive set of internal fetal parameters such as direct fetal heart rate and uterine pressure; and optional maternal SpO2 monitoring.
Specifications
- Battery
- Operating time (optional)
- Up to four
- General
- Care stage
- Intrapartum
- Patient type
- Fetal and maternal
- Waveforms
- Not for diagnostic use
- DECG, MECG
- Parameters
- External fetal parameters
- US/Toco
- Twin capability
- Standard
- Triplets capability
- Optional
- Internal fetal parameters
- DECG, IUP
- Smart Pulse technology
- Standard
- Cross channel verification
- Standard
- Fetal movement profile
- Standard
- Interfaces
- PS/2 interfaces
- Optional
- Interfaces
- System interface (optional)
- Serial, LAN
- Readings
- NST trace interpretation (optional)
- Up to three Fetal Heart Rates (FHR)
- NST timer
- Standard
- Data storage
- Data buffer
- Up to one
- Weight
- Weight without battery option
- 11.2 pounds/5.1 kg
- Weight with battery option
- 11.7 pounds/5.3 kg
- Display
- Monitor screen display
- 6.5 in/16.51 cm
- Touchscreen operation
- Standard
Related products

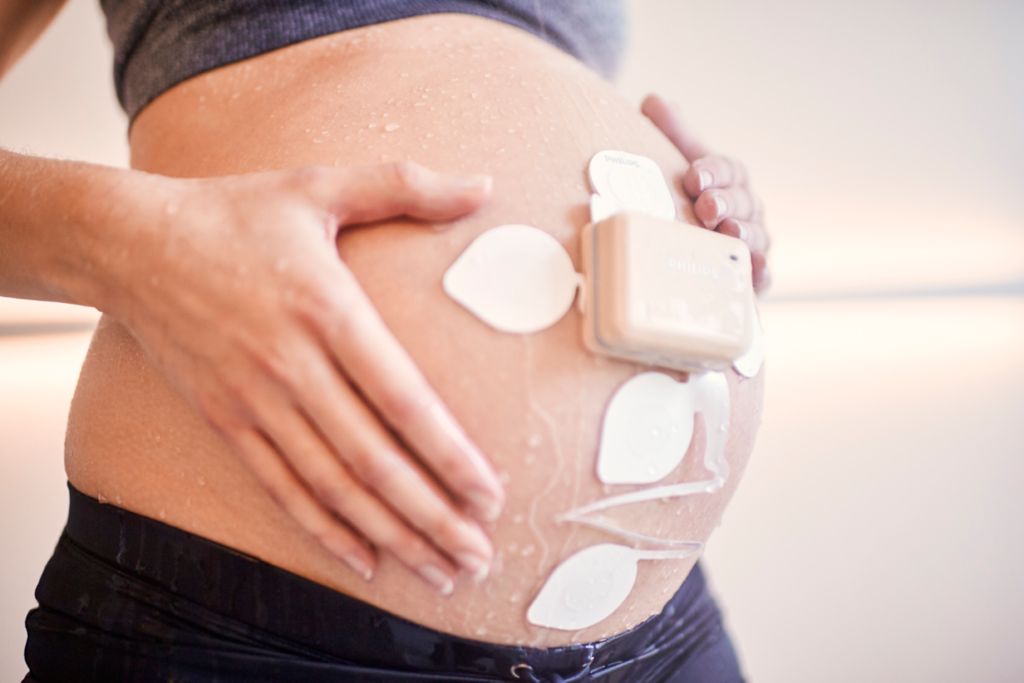

- As a caregiver, you want to sustain your patient’s mobility and comfort. Cableless transducers can help, without sacrificing essential monitoring. However, traditional cableless technology has limitations, such as mothers with a high BMI¹, or those undergoing epidural procedures. This is where the Avalon beltless maternal and fetal monitoring solution provides an alternative.
