Zenition 50
Mobile C-arm with Image Intensifier
Zenition 50
Mobile C-arm with Image Intensifier
Point-and-shoot simplicity and reliable uptime make the Zenition 50 mobile C-arm with image intensifier the ideal systems for intensive use in interventions and surgeries. Part of the Zenition mobile C-arm family – a series of harmonized mobile C-arms that offers proven ease of use and future-fit capabilities.
Clinical image gallery
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
- Clinical Image Philips BV Mobile C-arm Pulsera
Features
Save valuable time

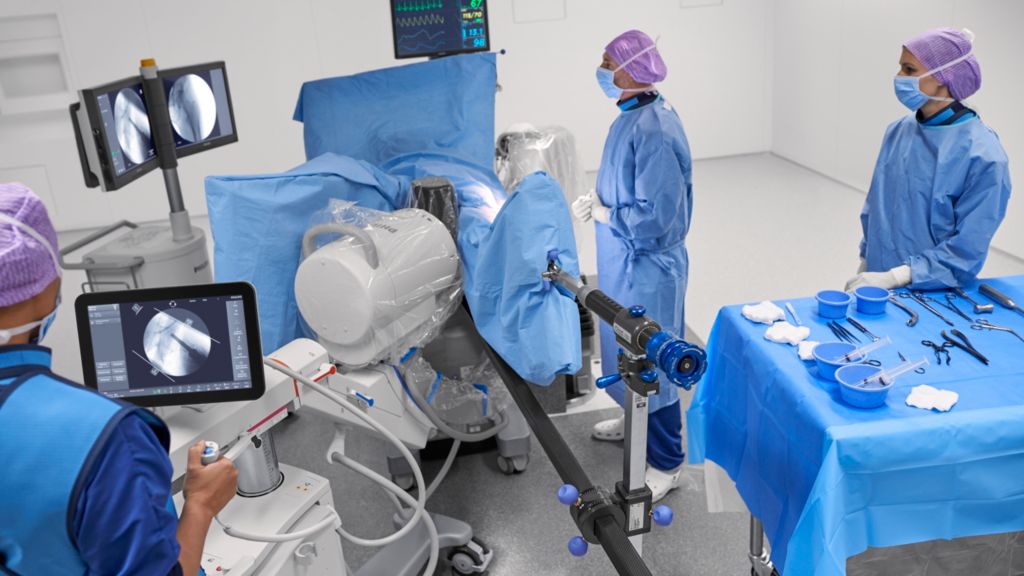

To keep things moving in busy departments, users can work more efficiently with the touch controls and navigational aids of Unify workflow. In a user study¹ Unify workflow reduced miscommunication and positioning errors by almost half.
Accelerate training

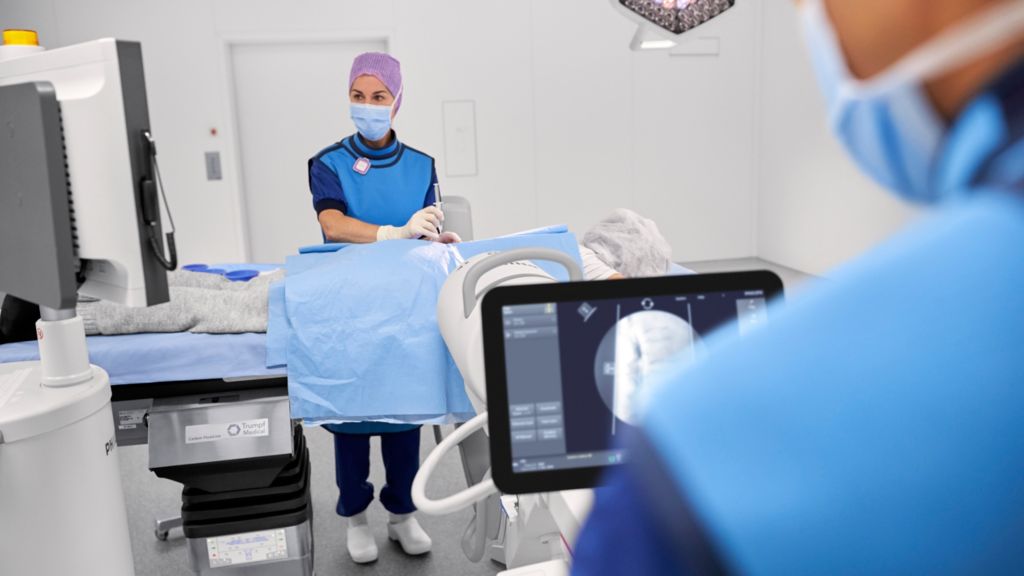

The intuitive point and shoot design and on-screen guidance of the Zenition 50 helps you train users faster. The Zenition user interface is so easy, it scored in the top 12% for best system usability¹.
Boost return on investment
Be open to new referrals with the standard Windows® platform ready to incorporate new innovations and software upgrades. Drive down operational costs with collaborative RightFit support options and cost-effectively extend system lifetime with Technology Maximizer².
Specifications
- X-ray generation
- X-ray generator
- Rotating anode tube with active heat management
- X-ray tube
- Monoblock 78,125 kHz high-frequency, micro-processor controlled generator
- Nominal power
- 15 kW: 120 kV, 125 mA
- Imaging chain
- Image Intensifier
- Triple-mode 9" HRC / Triple-mode 12" GG
- TV camera type
- CCD, high resolution 1K²
- Constant beam filtration
- Integrated beam filter: 1.0 mm Al. + 0.1 mm Cu
- Nominal II formats
- 23, 17, and 13 cm (9", 7", and 5") / 31, 23, and 17 cm (12", 9", and 7")
- Image processing
- ✓
- Stand monitor
- 15" LCD monitor on the C-arm gives a whole new level of simplicity
- Connectivity
- Video in
- S-Video, DVI (digital and analog), SDI
- Analog video out
- ✓
- Digital video out (optional)
- 2 DVI connectors left and right monitor
- USB storage
- PNG, MP4, BMP
- Advanced DICOM/IHE package (optional)
- Modality Worklist Management, Modality Performed Procedure Step Storage Commit, Full compliance to the IHE Scheduled Workflow Integration profile
- Options
- Stand monitor
- ✓
- Handheld remote control
- Controls the main image handling functions
- Touchscreen
- Available for Mobile View Station
- ViewForum
- ✓
- Image Viewer
- Multi Modality Viewer
- Vascular Extension
- Subtracted fluoroscopy, View Trace, Roadmap, Remask, Smart Mask and CO² mode
- Geometry
- C-arm depth
- 61 cm (24.0”)
- Source Image Distance
- 98 cm (38.7”)
- Rotation
- ± 360°, with safety stop at ± 135°
- Free space within C-arm
- 77 cm (30.3”)
- Angulation
- +90° to -25
- Extended angulation (optional)
- +90° to -45° for increased projection flexibility
- Lowest lateral working position
- 103.4 cm (40.7”)
Related products
- Experience exceptional imaging clarity and flexibility for performing a wide variety of cases with our fourth generation Flat Detector systems. Part of the Zenition mobile C-arm family – a series of harmonized mobile C-arm that offers proven ease of use and future-fit capabilities.
Disclaimer
Zenition mobile C-arm systems are available for sale in a limited number of countries. Please check with a local representative for availability in your market.
*Actual product representation may vary.
1. Results obtained during user tests performed in November 2013 by Use-Lab GmbH, an independent company. The tests involved 30 USA based clinicians (15 physicians teamed up with 15 nurses or X-ray technicians), who performed simulated procedures using Philips mobile X –ray systems in a simulated OR environment. None of them had worked with each other before.
2. Eligible RightFit Service Agreements are available with Technology Maximizer.
3. The clinical images are from the Philips BV Pulsera mobile C-arm and do not represent the final image quality of the Zenition C-arm system.
